Selection
Guide

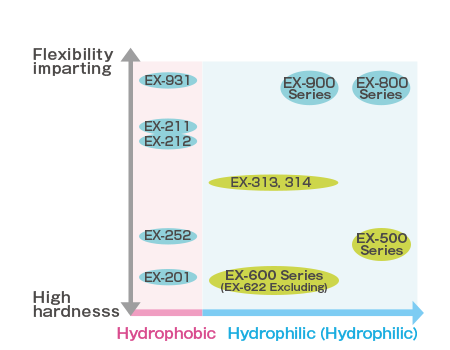

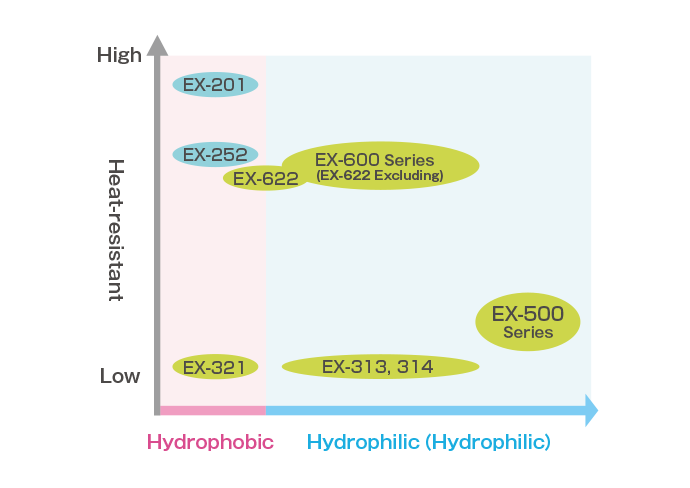

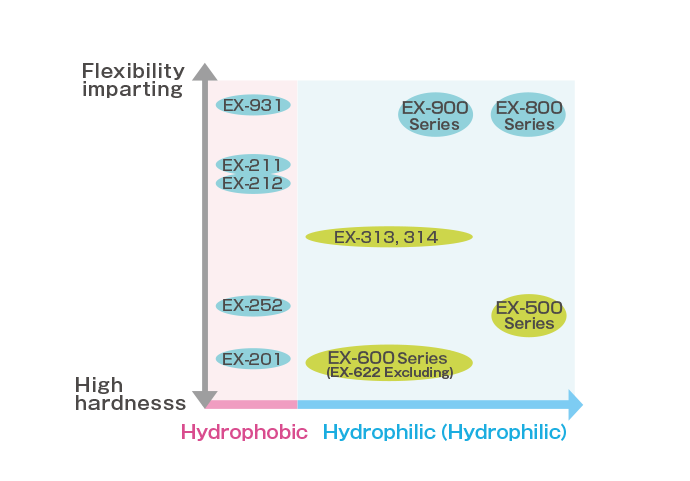

We offer a wide variety of products according to the purpose of use.
Please use the following as a guide to select the most suitable product.

Product
Lineup

List of multi-functional
types

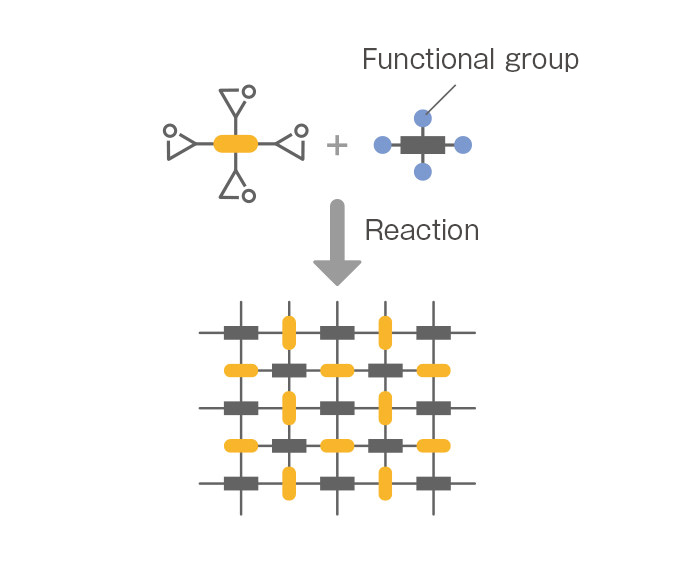

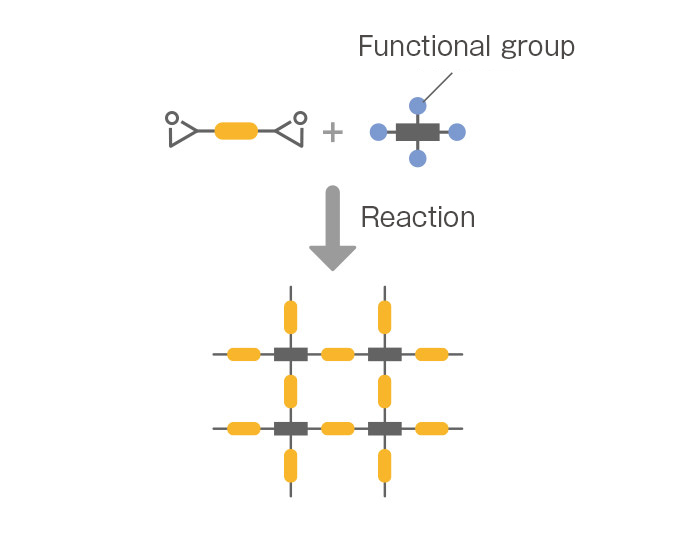

Polyfunctional epoxy compounds such as sorbitol, glycerin, and pentaerythritol are used as resin cross-linking agents, for improving the adhesion of paint, and for improving fibers and paper. Many are water-soluble, making them suitable to be used around water such as in manufacturing fibers and paper, and are VOC-free and environmentally friendly crosslinking agents.

SWIPE

Product name
EX-612
EX-614
EX-614BMajor Grade
EX-622
EX-313Major Grade
EX-314
EX-321Major Grade
EX-321LMajor Grade
EX-421
EX-512Major Grade
EX-521
EX-1610
Product name
Product name Chemical name Epoxy equivalent
(g/eq.)		 Viscosity
(ｍPa・s)		 Total chlorine content
(％)		 Color value
(APHA)		 Water solubility
(％)		 Application example Catalogue
EX-612 Sorbitol Polyglycidyl Ether 166 11,900 13.8 2(G) 42 paint, Adhesive, Textile PDF Details
EX-614 Sorbitol Polyglycidyl Ether 167 21,200 11.3 4(G) 78 paint, Adhesive, Textile PDF Details
EX-614B Major Grade Sorbitol Polyglycidyl Ether 173 5,000 10.1 3(G) 94 paint, Textile PDF Details
EX-622 Sorbitol Polyglycidyl Ether 191 11,800 19.4 2(G) Insoluble paint, Adhesive, Textile PDF Details
EX-313 Major Grade Glycerol Polyglycidyl Ether 141 150 9 10 99 paint, Adhesive, Textile PDF Details
EX-314 Glycerol Polyglycidyl Ether 144 170 11.5 20 64 paint, Adhesive, Textile PDF Details
EX-321 Major Grade Trimethylolpropane Polyglycidyl Ether 140 130 7.5 10 27 paint, Adhesive, Reactive diluent PDF Details
EX-321L Major Grade Trimethylolpropane Polyglycidyl Ether 130 300 0.3 30 Insoluble Reactive diluent PDF Details
EX-421 Diglycerol Polyglycidyl Ether 159 650 9.6 1(G) 88 paint, Textile PDF Details
EX-512 Major Grade Polyglycerol Polyglycidyl Ether 168 1,300 6.5 40 100 paint, Textile PDF Details
EX-521 Polyglycerol Polyglycidyl Ether 183 4,400 6.4 10 100 paint, Textile PDF Details
EX-1610 Multi-Functional Aliphatic type 170 2,200 0.5 1(G) 100 paint, Adhesive PDF Details
Product name Chemical name Epoxy equivalent
(g/eq.)		 Viscosity
(ｍPa・s)		 Total chlorine content
(％)		 Color value
(APHA)		 Water solubility
(％)		 Application example Catalogue

※(G):Gardner

※(G):Gardner

SWIPE

Click here for details
on multi-functional type

Click here for details
on multi-functional type

List of difunctional
types

Epoxy compound with base structures of polyethylene glycol, polypropylene glycol, hexanediol, phthalic acid, etc. It is used as a highly water-soluble crosslinking agent and resin modifier. Many have low viscosities and can be widely used as reactive diluents.

SWIPE

Product name
EX-810Major Grade
EX-810P
EX-811
EX-850
EX-851
EX-821
EX-830
EX-832
EX-841
EX-861Major Grade
EX-201
EX-201-IM
EX-211Major Grade
EX-212
EX-212L
EX-214L
EX-252Major Grade
EX-721
EX-920
EX-931
EX-991LMajor Grade
Product name
Product name Chemical name Epoxy equivalent
(g/eq.)		 Viscosity
(ｍPa・s)		 Total chlorine content
(％)		 Color value
(APHA)		 Water solubility
(％)		 Application example Catalogue
EX-810Major Grade Ethylene Glycol Diglycidyl Ether 113 20 0.6 20 100 Water-based cross-linking agent,Hydrophilizing ・ Flexibility-imparting agent PDF Details
EX-810P Ethylene Glycol Diglycidyl Ether 95 10 0.01 10 100 Crosslinker for waterborne for electronic materials,Hydrophilizing ・ Flexibility-imparting agent PDF Details
EX-811 Ethylene Glycol Diglycidyl Ether 132 20 9.7 10 98 Crosslinker for waterborne for electronic materials,Hydrophilizing ・ Flexibility-imparting agent PDF Details
EX-850 Polyethylene Glycol Diglycidyl Ether 122 20 0.5 30 100 Water-based cross-linking agent,Hydrophilizing ・ Flexibility-imparting agent PDF Details
EX-851 Polyethylene Glycol Diglycidyl Ether 150 30 7.5 10 99 Water-based cross-linking agent,Hydrophilizing ・ Flexibility-imparting agent PDF Details
EX-821 Polyethylene Glycol Diglycidyl Ether 185 40 4.5 30 100 Water-based cross-linking agent,Hydrophilizing ・ Flexibility-imparting agent PDF Details
EX-830 Polyethylene Glycol Diglycidyl Ether 268 70 0.3 40 100 Water-based cross-linking agent,Hydrophilizing ・ Flexibility-imparting agent PDF Details
EX-832 Polyethylene Glycol Diglycidyl Ether 284 90 7.3 10 100 Water-based cross-linking agent,Hydrophilizing ・ Flexibility-imparting agent PDF Details
EX-841 Polyethylene Glycol Diglycidyl Ether 372 110 1.9 30 100 Water-based cross-linking agent,Hydrophilizing ・ Flexibility-imparting agent PDF Details
EX-861Major Grade Polyethylene Glycol Diglycidyl Ether 551 (mp.45℃) 1.5 20 100 Hydrophilizing ・ Flexibility-imparting agent PDF Details
EX-201 Resorcinol Diglycidyl Ether 117 250 0.7 3(G) Insoluble Adhesion for electronic materials PDF Details
EX-201-IM Resorcinol Diglycidyl Ether 120 400 0.06 5(G) Insoluble Adhesion for electronic materials PDF Details
EX-211Major Grade Neopentyl Glycol Diglycidyl Ether 138 20 5.7 10 Insoluble Reactive diluent PDF Details
EX-212 1,6-Hexanediol Diglycidyl Ether 151 20 6.1 30 Insoluble Reactive diluent PDF Details
EX-212L 1,6-Hexanediol Diglycidyl Ether 135 15 0.4 40 Insoluble Reactive diluent for electronic materials PDF Details
EX-214L 1,4-Butanediol Diglycidyl Ether 115 15 0.3 1(G) 100 Reactive diluent for electronic materials PDF Details
EX-252Major Grade Hydrogenated Bisphenol A Diglycidyl Ether 213 2,200 4.5 10 Insoluble Cross-linking agent for paint,
UV curable resin		 PDF Details
EX-721 Diglycidyl o-Phthalate 154 980 0.9 2(G) Insoluble Resin stabilizer,
Structural material		 PDF Details
EX-920 Polypropylene Glycol Diglycidyl Ether 176 20 0.8 100 100 Water-based cross-linking agent,
textile,
Resin modifier		 PDF Details
EX-931 Polypropylene Glycol Diglycidyl Ether 471 130 3.9 20 Insoluble textile,
Adhesive,
Flexibility-imparting agent		 PDF Details
EX-991L Not disclosed 450 180 0.1 200 Insoluble Cross-linking agent for electronic materials,
Flexibility-imparting agent		 PDF Details
Product name Chemical name Epoxy equivalent
(g/eq.)		 Viscosity
(ｍPa・s)		 Total chlorine content
(％)		 Color value
(APHA)		 Water solubility
(％)		 Packaging Application example

※(G):Gardner

※(G):Gardner

SWIPE

Click here for details
on difunctional type

Click here for details
on difunctional type

List of monofunctional types

Monofunctional epoxy compounds such as 2-ethylhexanol and phenol are used as reactive diluents, resin stabilizers, etc. Since we have a lineup of both hydrophilic and hydrophobic products, appropriate usage according to the purpose and situation is possible.

SWIPE

Product name
EX-121Major Grade
EX-141
EX-142-IM
EX-145
EX-146Major Grade
EX-146P
EX-171Major Grade
EX-192
EX-731
Product name
Product name Chemical name Epoxy equivalent
(g/eq.)		 Viscosity
(ｍPa・s)		 Total chlorine content
(％)		 Color value
(APHA)		 Water solubility
(％)		 Application example Catalogue
EX-121Major Grade 2-Ethylhexyl Glycidyl Ether 187 4 0.01 10 Insoluble Resin
stabilizer, Reactive diluent		 PDF Details
EX-141 Phenyl Glycidyl Ether 151 8 0.02 10 Insoluble Resin
stabilizer, Reactive diluent		 PDF Details
EX-142-IM 2-Phenylphenol Glycidyl Ether 240 290 0.03 70 Insoluble Reactive diluent for electronic materials,
Resin
stabilizer		 PDF Details
EX-145 Phenyl (EO)5 Glycidyl Ether 400 60 0.3 60 100 Hydrophilic diluent PDF Details
EX-146Major Grade p-tert-Butyl Phenyl Glycidyl Ether 255 20 0.3 <1(G) Insoluble Reactive diluent PDF Details
EX-146P p-tert-Butyl Phenyl Glycidyl Ether 210 17 0.01 1(G) Insoluble Reactive diluent PDF Details
EX-171Major Grade Lauryl Alchohol (EO)15 Glycidyl Ether 971 (mp.40℃) 1.7 10 100 Hydrophilizing agent PDF Details
EX-192 Glycidyl Ether of a Mixture of C12, C13 Alcohol 281 8 4 10 Insoluble Resin stabilizer,Reactive flame retardant PDF Details
EX-731 N-Glycidyl Phthalate 216 (mp.95℃) - - - Structural material,
Adhesion modifier		 PDF Details
Product name Chemical name Epoxy equivalent
(g/eq.)		 Viscosity
(ｍPa・s)		 Total chlorine content
(％)		 Color value
(APHA)		 Water solubility
(％)		 Application example Catalogue

※(G):Gardner

※(G):Gardner

SWIPE

Click here for details
on monofunctional type

Click here for details
on monofunctional type

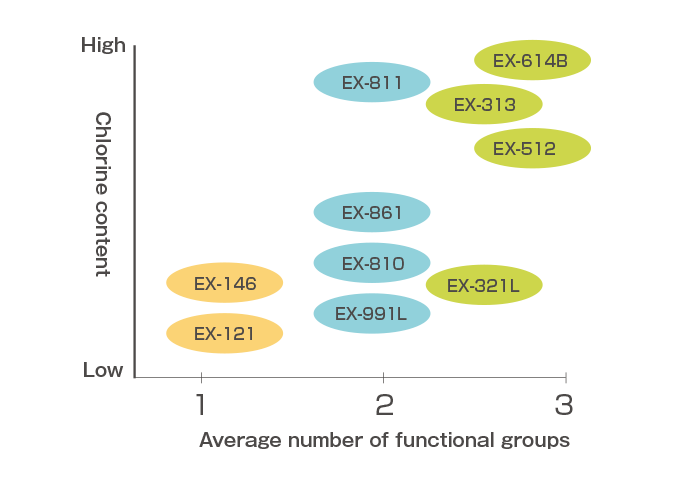

List of
Low Chlorine Content type

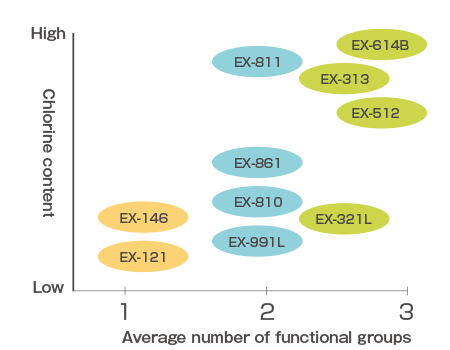

These epoxy compounds are significantly low chlorine content. They can be used as reactive diluents for electronic materials, coatings and other applications where quality deterioration of may become a problem due to chlorine. We offer a wide range of products from aliphatic to aromatic epoxy compounds.

SWIPE

Product
name
EX-321LMajor Grade
EX-1610
EX-212L
EX-214L
EX-810P
EX-991LMajor Grade
EX-201-IM
EX-121
EX-141
EX-142-IM
EX-146P
Product
name
Product name Chemical name Epoxy equivalent
(g/eq.)		 Viscosity
(ｍPa・s)		 Total chlorine content
(％)		 Color value
(APHA)		 Water solubility
(％)		 Application example Catalogue
EX-321L Major Grade Trimethylolpropane Polyglycidyl Ether 130 300 0.3 30 Insoluble Reactive diluent PDF Details
EX-1610 Multi-Functional Aliphatic type 170 2,200 0.5 1(G) 100 paint, Adhesive PDF Details
EX-212L 1,6-Hexanediol Diglycidyl Ether 135 15 0.4 40 Insoluble Reactive diluent for electronic materials PDF Details
EX-214L 1,4-Butanediol Diglycidyl Ether 115 15 0.3 1(G) 100 Reactive diluent for electronic materials PDF Details
EX-810P Ethylene Glycol Diglycidyl Ether 95 10 0.01 10 100 Crosslinker for waterborne for electronic materials,
Cross-linking agent		 PDF Details
EX-991L Not disclosed 450 180 0.1 200 Insoluble Flexibility-imparting agent PDF Details
EX-201-IM Resorcinol Diglycidyl Ether 120 400 0.06 5 Insoluble Adhesion for electronic materials PDF Details
EX-121Major Grade 2-Ethylhexyl Glycidyl Ether 187 4 0.01 10 Insoluble Resin
stabilizer, Reactive diluent		 PDF Details
EX-141 Phenyl Glycidyl Ether 151 8 0.02 10 Insoluble Resin
stabilizer, Reactive diluent		 PDF Details
EX-142-IM 2-Phenylphenol Glycidyl Ether 240 290 0.03 70 Insoluble Reactive diluent for electronic materials,
Resin
stabilizer		 PDF Details
EX-146P p-tert-Butyl Phenyl Glycidyl Ether 210 17 0.01 1(G) Insoluble Reactive diluent PDF Details
Product name Chemical name Epoxy equivalent
(g/eq.)		 Viscosity
(ｍPa・s)		 Total chlorine content
(％)		 Color value
(APHA)		 Water solubility
(％)		 Application example Catalogue

※(G):Gardner

※(G):Gardner

SWIPE

Click here for details
on Low Chlorine Content type

Click here for details
on Low Chlorine Content type

List of GREEN DENACOL

The GREEN DENACOL is biobased epoxy compound made from plant-derived raw material. The raw material change from conventional petroleum-based to biobased has enable the production of sustainable epoxy crosslinkers. It also contributes to the reduction of CO₂ emissions through photosynthesis of the raw material plants.

SWIPE

Product
name
GEX-313Major Grade
GEX-512Major Grade
GEX-521Major Grade
GEX-622Major Grade
GEX-614BMajor Grade
Product
name
Product name Chemical name Epoxy equivalent
(g/eq.)		 Viscosity
(ｍPa・s)		 Biobased content
(％)		 Total chlorine content
(％)		 Color value
(APHA)		 Water solubility
(％)		 Application example Catalogue
GEX-313 Major Grade Glycerol
Polyglycidyl Ether		 141 150 > 99 9 10 99 paint、
Adhesive、
Textile		 PDF Details
GEX-512 Major Grade Polyglycerol Polyglycidyl Ether 168 1,300 > 99 6.5 40 100 paint、
Adhesive、
Textile		 PDF Details
GEX-521 Major Grade Polyglycerol
Polyglycidyl Ether		 183 4,400 > 99 6.4 10 100 paint、
Adhesive、
Textile		 PDF Details
GEX-622 Major Grade Sorbitol
Polyglycidyl Ether		 191 11,800 > 99 19.4 2(G) Insoluble paint、
Adhesive、
Textile		 PDF Details
GEX-614B Major Grade Sorbitol
Polyglycidyl Ether		 173 5,000 80 10.1 3(G) 94 paint、
Textile		 PDF Details
Product name Chemical name Epoxy equivalent
(g/eq.)		 Viscosity
(ｍPa・s)		 Biobased content
(％)		 Total chlorine content
(％)		 Color value
(APHA)		 Water solubility
(％)		 Application example Catalogue

※(G):Gardner

※(G):Gardner

SWIPE

Click here for details on GREEN DENACOL

Click here for details
on GREEN DENACOL

※Each property and data introduced in this page, it is a representative value, NOT a guaranteed value. Also, please note that the specifications of the products are subject to change without notice.
